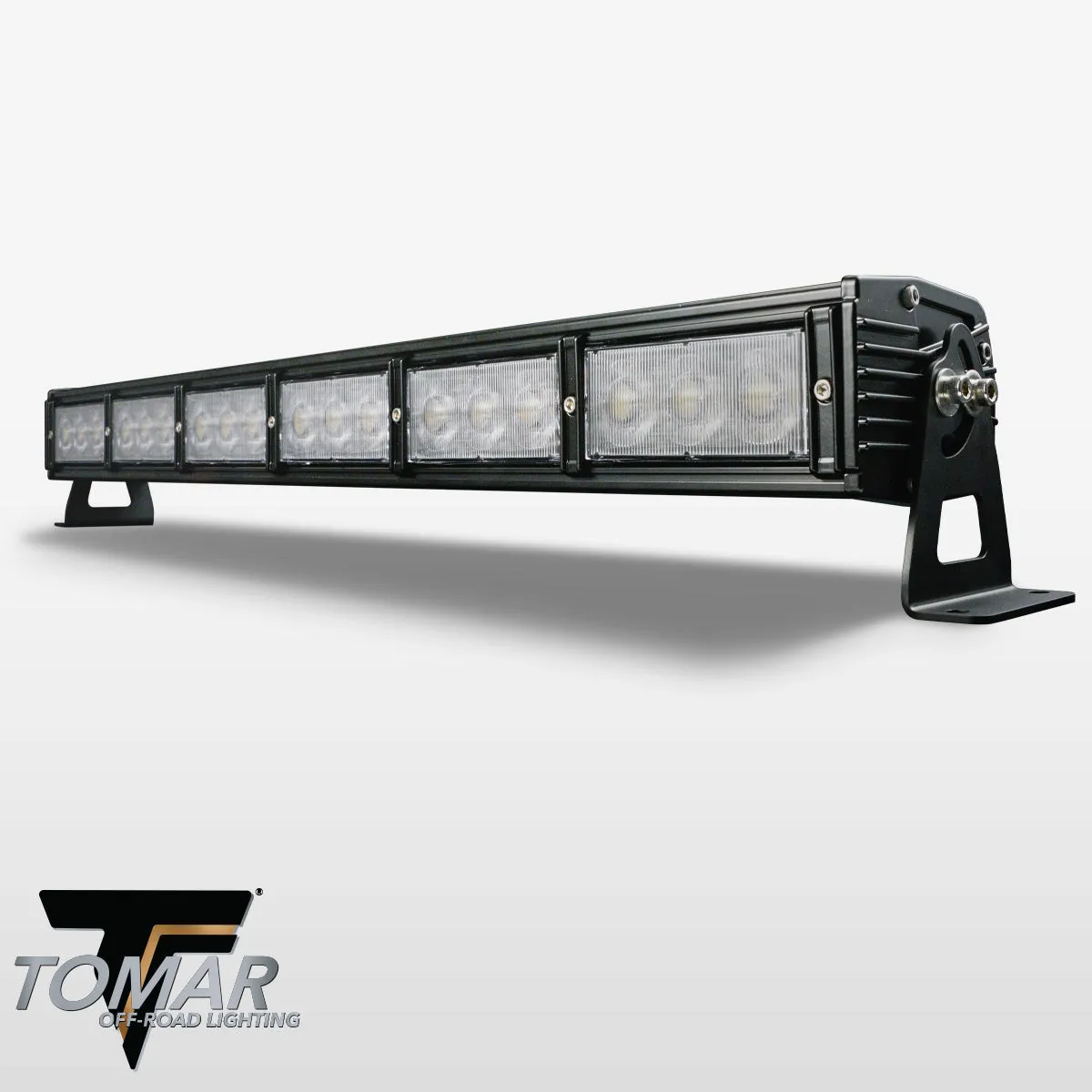

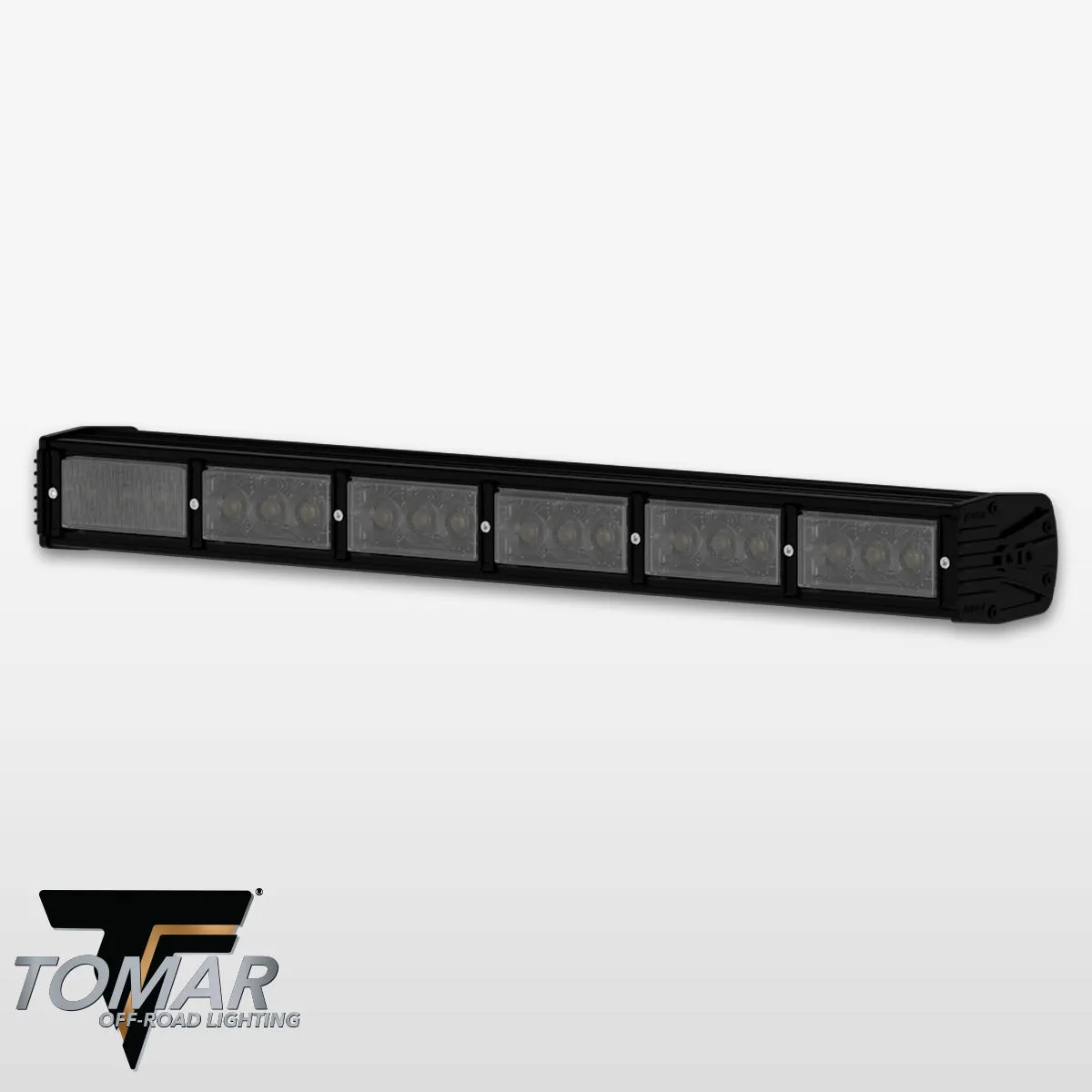

TOMAR's 30" TRX Series LED Light bar is a durable and rugged LED light bar with a durable 6063-T5 Aluminum frame with superior optics, low amp draw, and modular design. This 30" off-road light bar is designed to be both dependable and energy-efficient.
Whether racing through the desert or navigating through the woods, the TRX Series of LED lightbars is the choice in rugged and reliable off-road lighting solutions.
Available in different beam patterns and wiring options the 30" TRX light bar is perfect the perfect aftermarket LED light bar for your truck, SUV, or UTV.
KEY FEATURES
- TOMAR’s TRX Series 30" LED light bar is built to withstand the most demanding conditions with a rugged, shockproof, and waterproof design.
- Internally-relayed switching and low-current control wires means no need to add vehicle relays to switches.

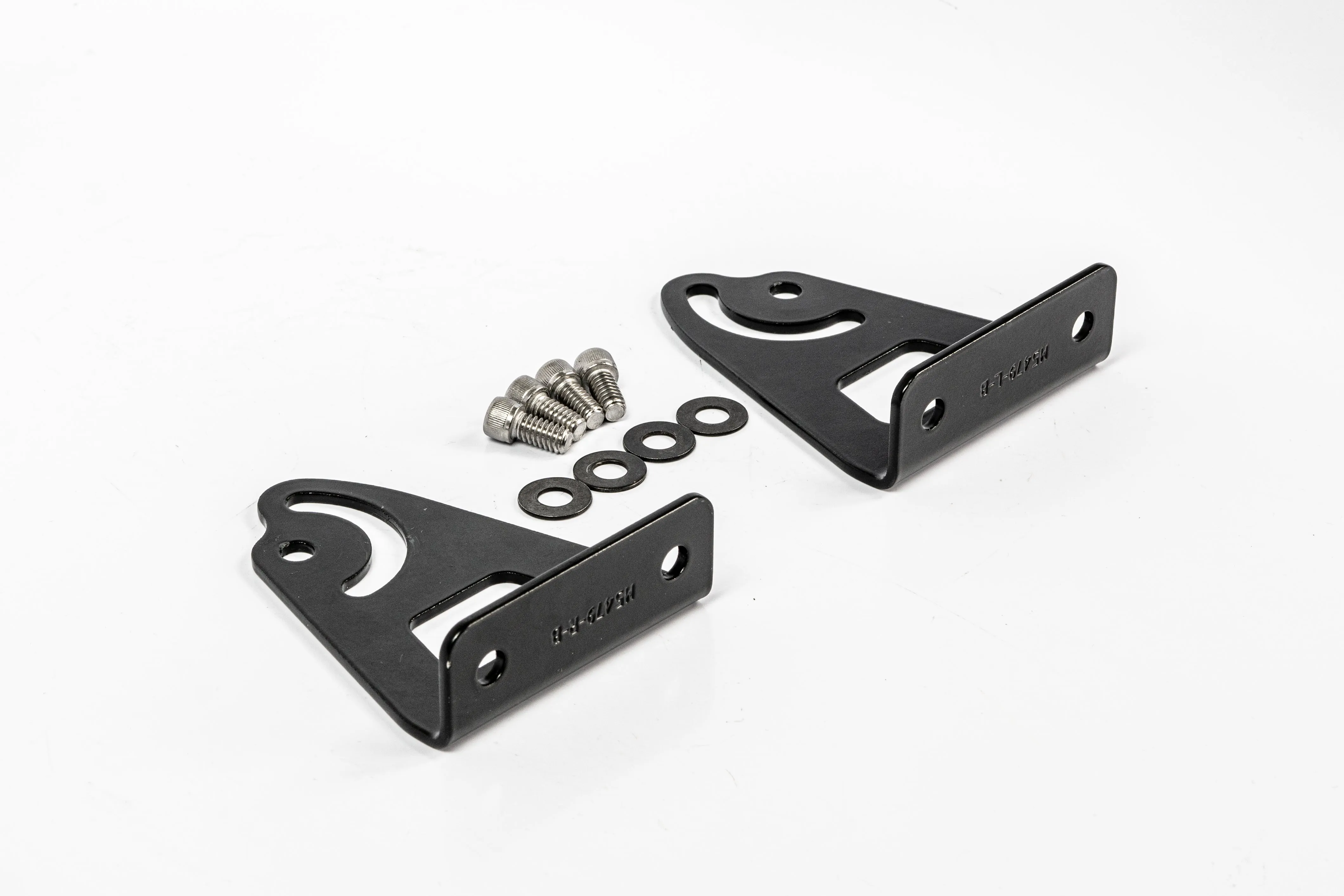

- Easy installation: All TRX Series light bars come with a universal mounting kit, making them easy to install on any vehicle.
- Utilizes TOMAR’s super optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently.
- Designed to decrease wind noise
- SAE-J575 Vibration Tested
- Features 6 Field-interchangeable lamp modules
- Clear Vision Optics meet SAE-J595 for directional flashing optical warning devices
- Cree XP-L Primary LED’s with lifetime over 36,300 hours
- Energy Efficient: Only 12.6 draw at 12VDC.
- Single Color (White) or Dual-Color (White/Amber) options are available (see product options).
- Raw Lumens (White): 165060 Lumens
- Raw Lumens (Amber when dual-mode configuration is selected): 5280 Lumens
- Waterproof - IP68 and IP69K rate, immersion tested up to 9 meters
- Operating temperature: -40°C to 60°C
- Heavy-duty 6063-T5 Aluminum Heatsink for maximum intensity over long periods
- Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
TOMAR DUAL COLOR OVERVIEW:
What sets the TRX light bars apart is its true amber/white dual-color modules. This feature is essentially gives you two lightbars in one housing.
With true amber/white dual-color modules, the TRX provides unbeatable visibility in weather conditions. The amber override feature allows you to switch from white to amber light output, making it ideal for foggy, smoky, or rainy conditions where traditional white light can be too bright and reflective. This feature is crucial for off-road vehicles requiring maximum visibility to navigate challenging terrain.
HOW DOES IT WORK?
The dual-color mode feature is achieved using separate groups of LED lights for each color. When you switch from one color to another, the power supply to the corresponding group of LEDs is activated or deactivated. This allows the user to easily change the light bar’s color with a switch’s flick or by pressing a button, depending on the model.
30" TRX Light Bar Specs
- Number of Modules: 6
- Number of LEDs: 18

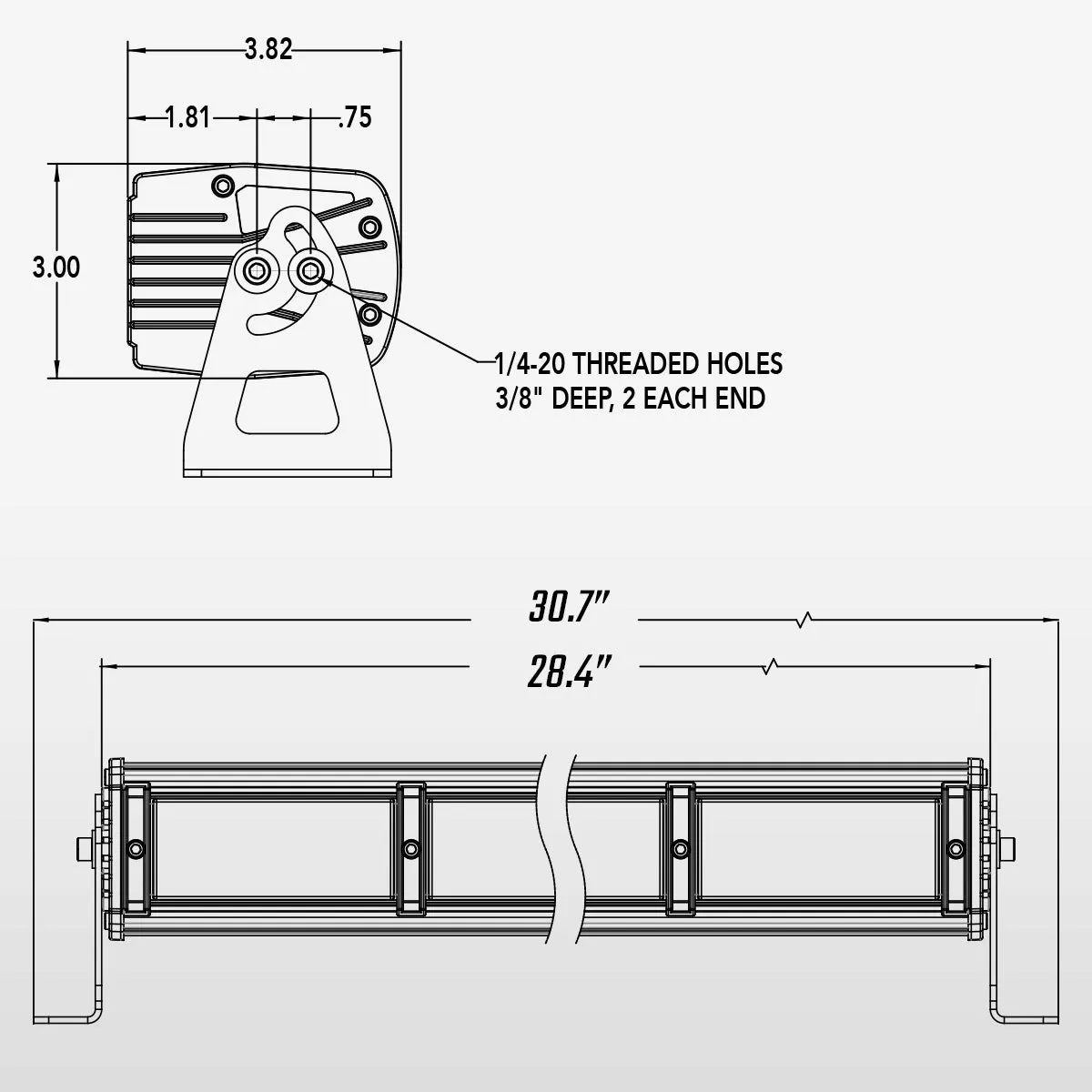

- Nominal length (in.): 30"
- Length with housing (in.): 28.4"
- Length with supplied brackets (in.): 30.7"
- Watts: 173.9
- AMPS: 12.6
- Raw Lumens (White): 16560
- Raw Lumens (Amber): 5280
- Waterproof - IP68 and IP69K rate, immersion tested up to 9 meters
- Operating temperature: -40°C to 60°C
SPOT BEAM PATTERN
- Distance at 1 Lux: 2156ft
- Distance at 0.25 Lux: 4313ft
- Peak Beam Candela: 432000
FLOOD BEAM PATTERN
- Distance at 1 Lux: 689ft
- Distance at 0.25 Lux: 1379ft
- Peak Beam Candela: 44160
COMPOSITE BEAM PATTERN
- Distance at 1 Lux: 808ft
- Distance at 0.25 Lux: 1615ft
- Peak Beam Candela: 60600
