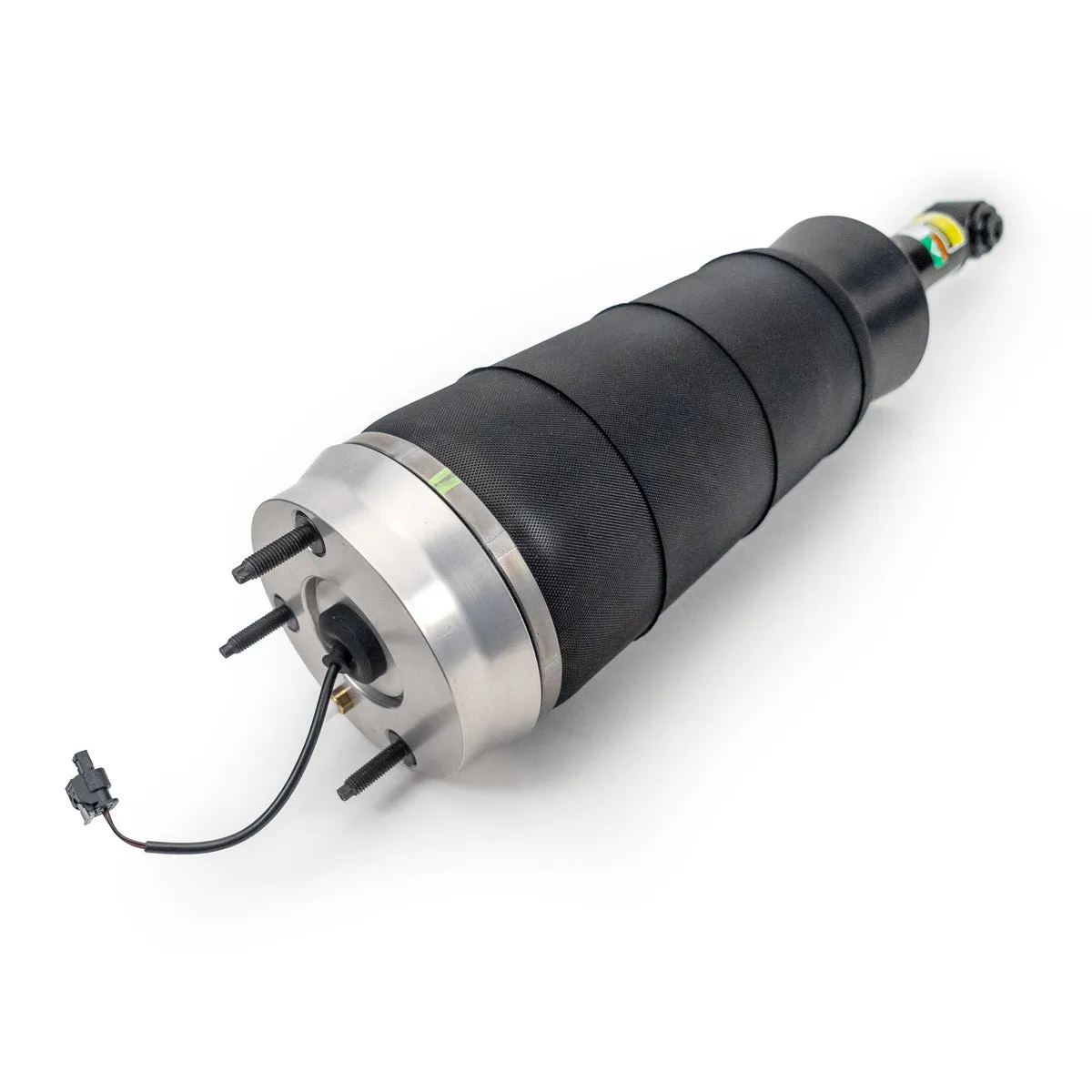

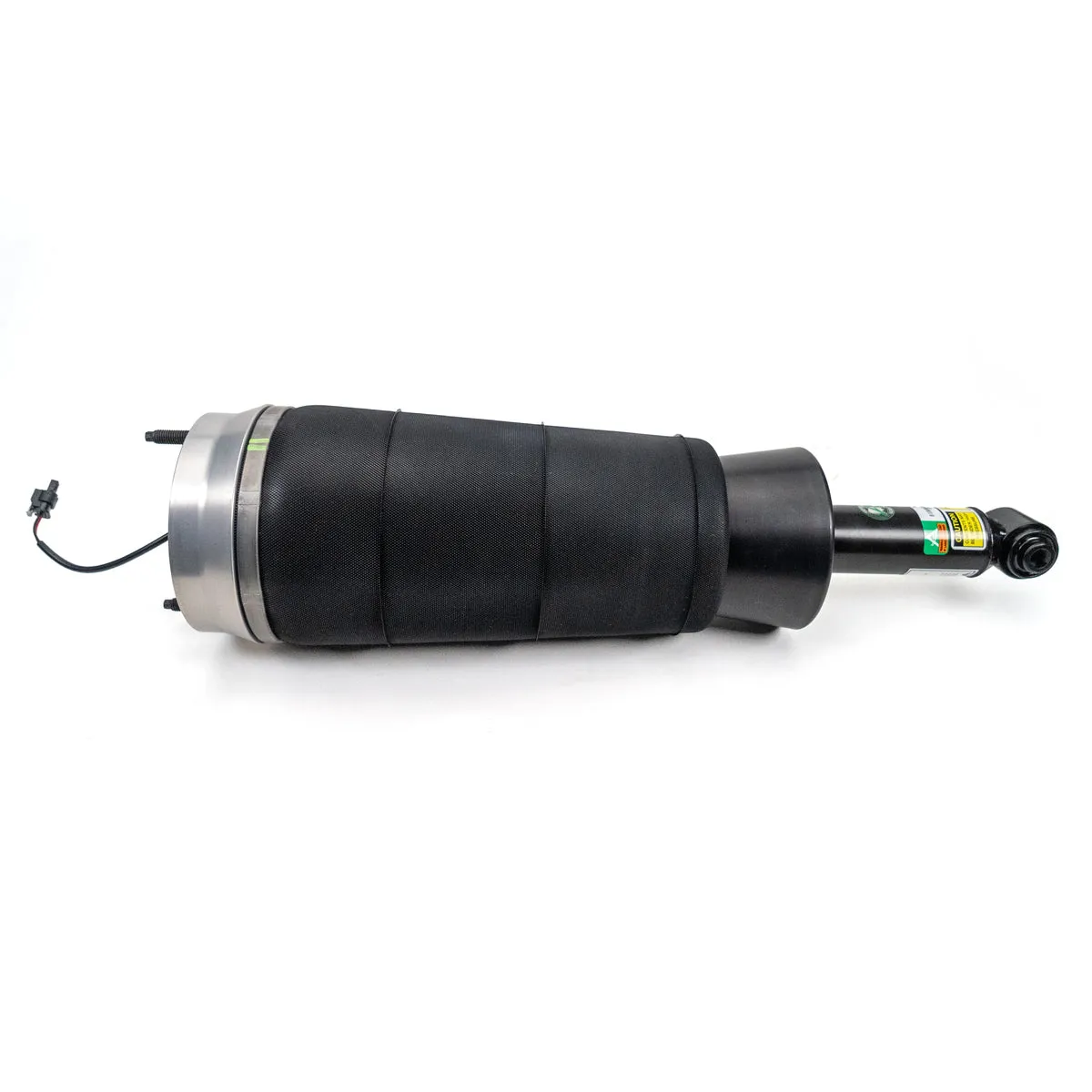

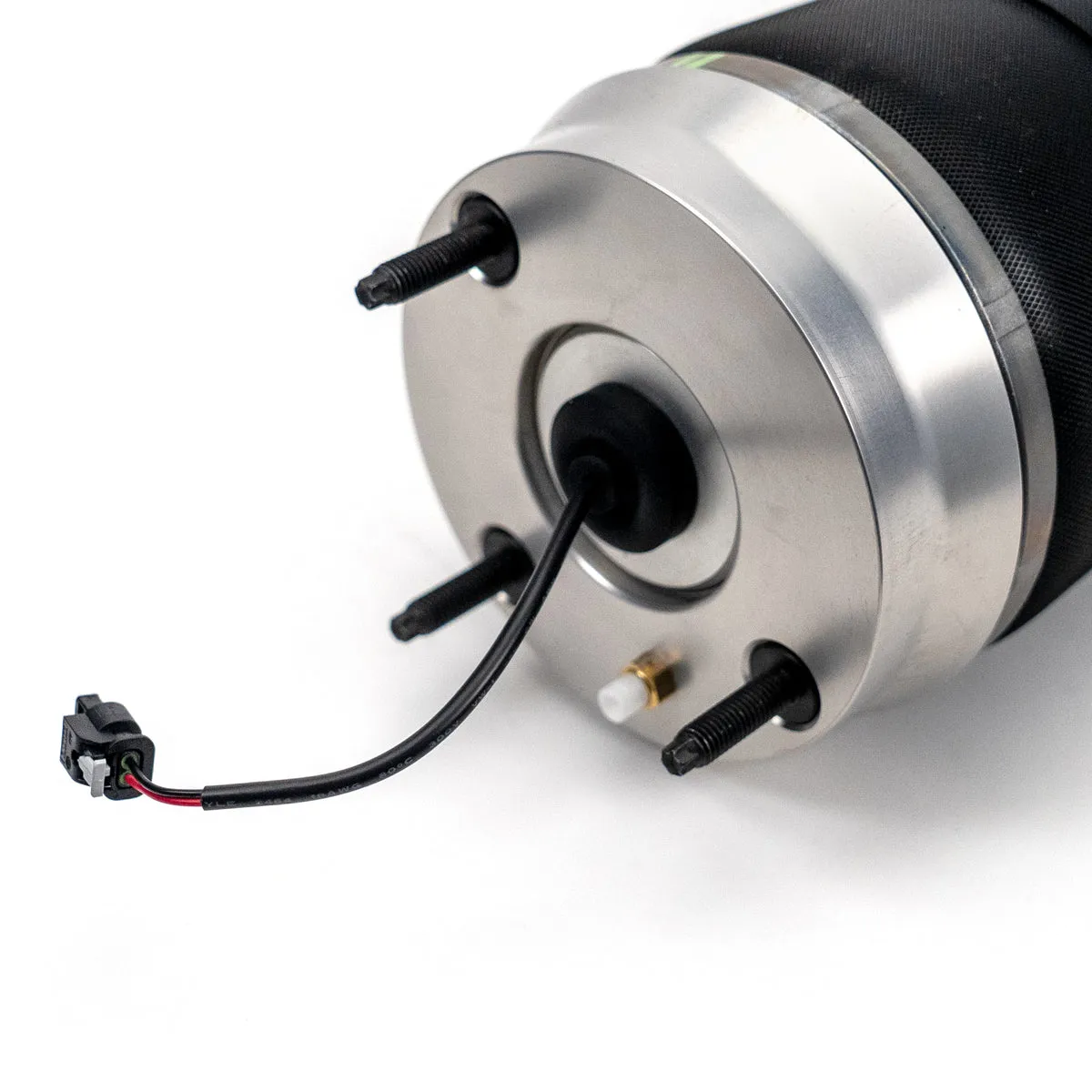

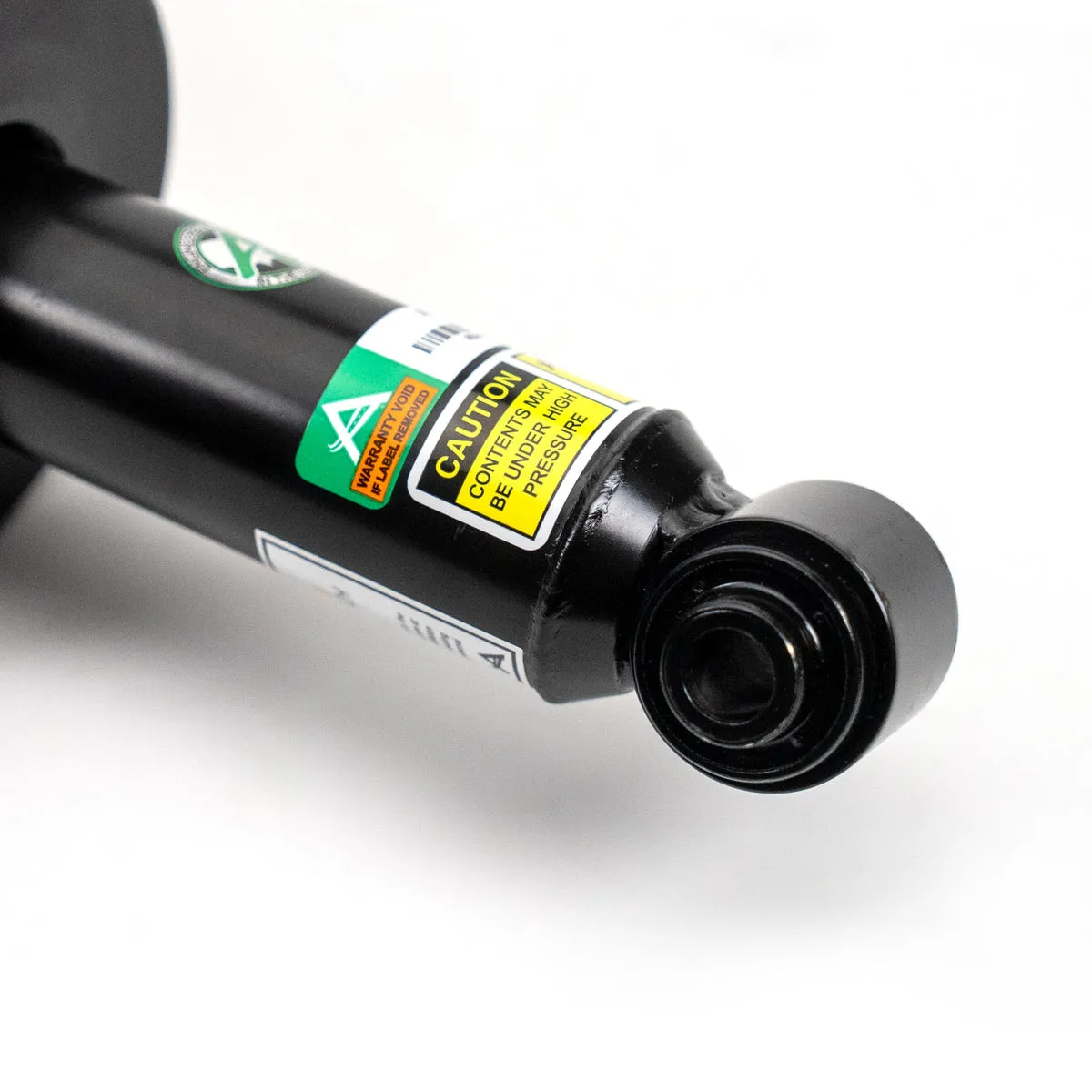

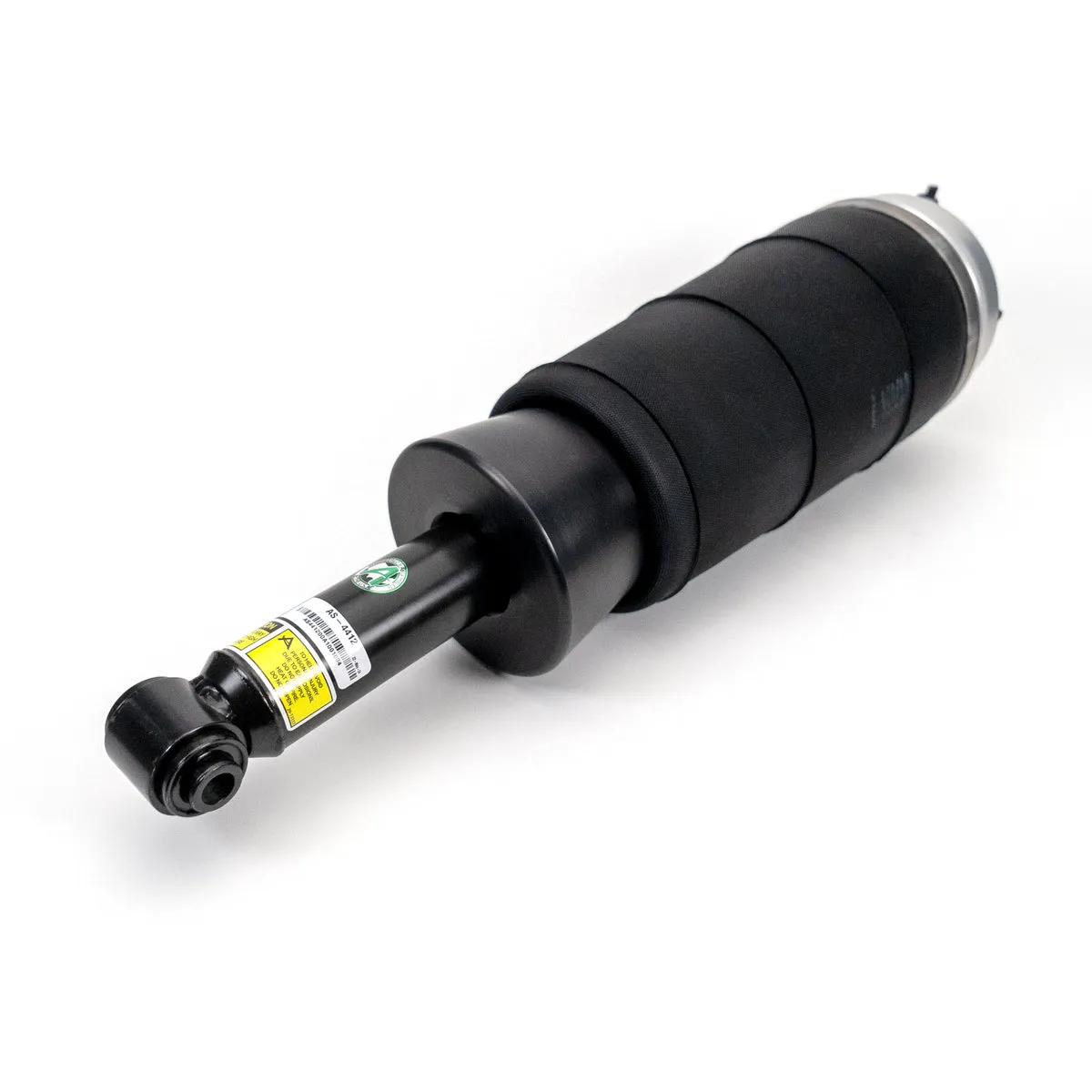

New, Arnott engineered, aftermarket air suspension strut for the rear of the 2021-2024 Cadillac, Chevrolet and GMC including the Silverado, Escalade and Yukon. This new assembly is built with premium components precisely tuned to ride like the OE, premium, multi-ply Continental Conti-Tech air sleeve, long-lasting O-rings and bump stop, heavy-duty crimping rings, and a diecast top mount made of aluminum. This universal shock, which fits both the left and right side, is designed and assembled in the USA and works with the vehicle's auto leveling functionality.
FEATURES
- Exclusively for Cadillac Escalade/Escalade ESV, Chevrolet Suburban/Tahoe and GMC Yukon/Yukon XL (GMT 1xx chassis)
- Continental ContiTech Air Sleeve
- Heavy Duty Crimping Rings
- Replace in Pairs
SPECIFICATIONS
- Adjustable: No
- Adjustable Damping: No
- Air Adjustable: YES
- Air Bladder: YES
- Air Bladder Material: Rubber
- Air Ride Suspension: YES
- Bearing Plate Included: YES
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot/dust Shield Included: NO
- Compressed Length: 432
- Dust Shield Material: Plastic
- Extended Length: 574
- Gas Charged: YES
- Grade Type: Standard
- Heavy Duty Crimping Rings: YES
- Internal Construction Type: Monotube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Loop Bushing
- Lower Mounting Isolator Included: YES
- Mounting Hardware Included: YES
- Progressive Spring Rate: No
- Protective Aluminum Can: No
- Shock Spring Assisted: YES
- Shock/strut Design: Monotube
- Spring Rate Type: Linear
- Springs Included: YES
- Travel Length: 142
- Upper Mount Type: Special
- Upper Mounting Isolator Included: YES
